DIKSUCHI 3366

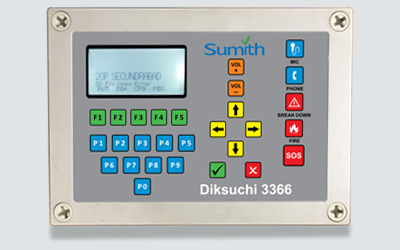

The Sumith's Diksuchi-3366 Vehicle Mounted Unit (VMU) has built-in GSM and GPS modules which provide real time information of the vehicle. It detects next stop, arriving stop and current stop, displays text on the internal display board and also makes audio announcement. It sends selected route information to outer LED display boards for passengers. The VMU sends real time location information, alerts/SoS etc., to the back-end servers which in turn can be used to generate reports required.
Features

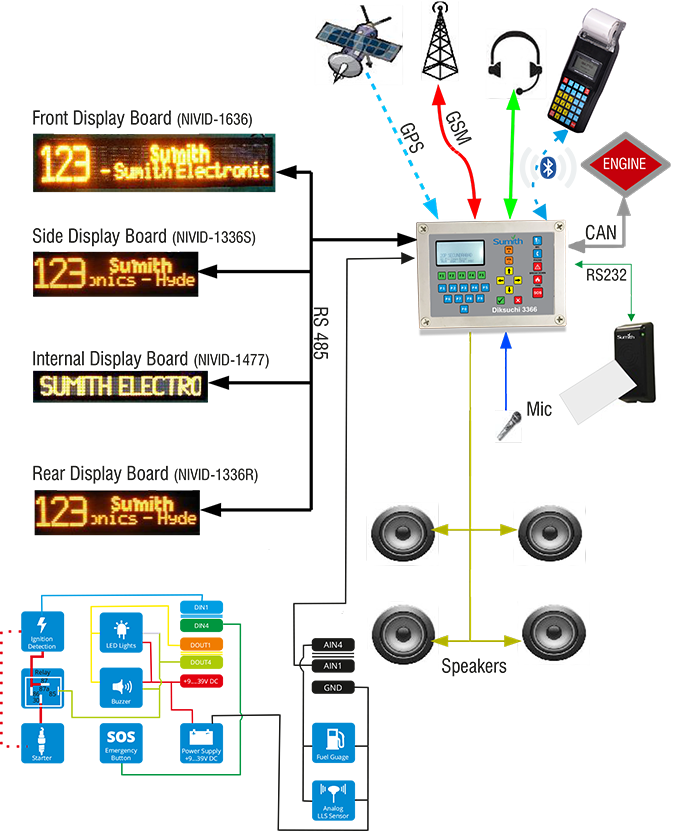

Functional Diagram
Technical Specifications
Features
- Automatic Vehicle Location. Sends location information to back-end server at periodic intervals
- Stores up to 150K way points in case of loss of communication and it will be intact when VMU is switched OFF or during the power failures. The VMU sends stored data once communication link is established along with current location information
- Three modes of communication: SMS, GPRS and both SMS & GPRS( fall back option in case of GPRS failure)
-
Alerts
- Over Speed
- Harsh Break
- Internal Battery Low
- Ignition/Engine ON/OFF ( using Digital Input)
- SoS ( using Digital Input/ Keypad)
- Harsh Acceleration
- Main Power Status
- Tamper
- Two way voice communication for pre-configured numbers
- Supports more than 250 routes with >50 stops/route
- Automatically gets the schedule information from servers.
- Automatically selects the trip/route start and stop as per the schedule and sends same to back office server.
- Vehicle Health Monitoring and Status using CAN
- Over The Air Firmware up-gradation and configuration
- 4 - Digital Inputs, 4 - Digital Outputs, and 4 - Analog Inputs
- Supports both in-built antenna and/or external antenna
- Built-in Two Channel (40W each) audio amplifier with Mic Interface
- 4 to 8 hours battery backup. No support of Audio if unit is on battery mode
- Automatic audio announcement of stops and text message display on Internal LED Display Board
- File uploading using USB
- Confirms to IP65
- Driver Login/ Logout Using RFID or Password Key
Functional Diagram
Technical Specifications
| Microcontroller: | 32-bit Microcontroller | ||||||||||||||
| Memory: | 512 Kbyte Flash, 64/128Kbyte RAM, Up to 16GB Storage Memory(SD Card) | ||||||||||||||
| LCD: | 128x64 pixel Graphical LCD with white LED | ||||||||||||||
| Keypad: | Alphanumeric Keypad with Navigational Keys, Pre load Keys, functional keys, Volume Control Keys, OK Key, Cancel Key, Phone, Mic, SoS, Breakdown, and Fire Keys | ||||||||||||||
| Display Board Interface : |
|
||||||||||||||
| GSM/GPRS |
Quad-Band 850/ 900/ 1800/ 1900 MHZ GPRS multi-slot class 10/8; GPRS mobile station class B Compliant to GSM phase 2/2+ Class 4 (2 W @850/ 900 MHZ); Class 1 (1 W @ 1800/1900MHz) |
||||||||||||||
| GPS |
22 Tracking/66 acquisition-channel, up to 210 primary channels Sensitivity: Acquisition: -148 dBm, Navigation: -160 dBm, Tracking: - 163 dBm, Horizontal Accuracy < 2.5m CEP, Velocity Accuracy: 0.1 m/s, Acceleration Accuracy: 0.1 m/s2 Time to Fix: Hot start < 1 sec, Warm Start: 30 sec, Cold Start: 32 sec |
||||||||||||||
| Audio |
Built-in 80W Audio Amplifier. Two channels, each 40W, and Mic Interface |
||||||||||||||
| 2 - way Voice Communication | Hands Free Voice Interface | ||||||||||||||
| Power Supply |
9V to 39V DC Current with Audio @ 24V DC: 3A ( Max), 1.5A ( Typical) Current without Audio @ 24VDC: 800 mA ( Max), 250 mA (Typical) Protection: Cranking ( Over voltage and Under voltage), Reverse polarity protection, Input short circuit protection Built-in battery backup ( Lithium-Ion 3.7V 1000mAH/1800 mAH ) |
||||||||||||||
| Mechanicals |
Rugged construction with Aluminum and Powder Coated, Vibration Proof 178mm (D) x 126mm (W) x 35mm (H), Confirms to IP65 |
||||||||||||||
| Operating Temperature | -10°C to +80°C | ||||||||||||||
| Humidity | 5% to 98% RH |
