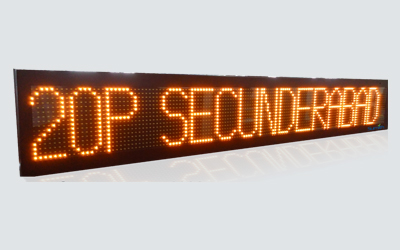

NIVID 1636
Sumith's NIVID-1636 compliance to Urban Bus Specification-II (JNNURM-II) of LED based Bus Destination Display Board.
Features
Technical Specifications
Features
- Low Power Consumption due to efficient design
- Wide viewing angle to assist roadside legibility
- Excellent readability even in difficult light conditions
- Flicker free display
- LED: PLCC2 SMD
- Standard Display Matrix: 16 x 144 or 16 x 192
- Also available in customized sizes
- Multi-lingual text ( English and 2 regional languages)
- Amber is the typical monochrome LED colour, but other options also available (e.g. RED, WHITE, GREEN, BLUE etc)
- Capability to show customized graphics
- Automatic brightness control as per ambient light conditions up to 50 steps
- 2-line English and 1-Line regional language display
- Also supports 2-line regional language display
- Supports fixed, scrolling, flashing, alternative and combinations of these display effects
- Capability to store the messages
-
Bus Destination Application
- Displays route number, start stop, end stop and via stops.
- Maximum size of the route number: 6 characters. Supports route number in regional language
- Displays route number: left side, right side and center of the display board
- Displays route information, slogans, advertisements etc.
- This display board used as “FRONT DISPLAY BOARD”
Technical Specification
| LED Pitch |
16 x 144 Matrix - 12.5 mm x 12.5 mm ( H x V ) 16 x 192 Matrix - 9.375 mm x 12.5 mm ( H x V ) |
||
| LEDs: |
High Intensity, Amber Colour (591 to 595 nm) PLCC2 (SMD) Package Colorless clear window |
||
| Viewing Angle: | Horizontal 120° and vertical 120° | ||
| Brightness : | >1000 mcd | ||
| Visibility | Clearly visible in Day and Night, in all weathers up to 50 meters distance | ||
| Display Size | 1800 mm x 200 mm (H x V ) | ||
| Character Size | 1-line 200 mm and 2-line 100mm each | ||
| Visual Effects | Fixed, Flashing, Alternative, Scrolling and combinations | ||
| Communication Interface | RS-485, Full/Half Duplex, Baud Rate up to 115.2Kbps | ||
| Power Supply* |
|
||
| Cabinet |
1870 mm x 270 mm x 35 mm (L x H x D ) Rugged construction with Aluminum and Powder Coated. Vibration proof (confirms to IP66) |
||
| Operating Temperature | -10°C to 80°C | ||
| Operating Humidity | 5% to 98% RH | ||
| Display Cover | UV protected Polycarbonate sheet |
Datasheets
Applications
- Bus Destination Boards
- Factory and Production
- Reception and welcoming
- Exhibition and promotions
- Clinic Displays and Waiting Room Signs
